Key Features
💡 Ultra High Brightness: 500W–1200W power options with up to175,000 lumens output.
⚙️ Precision Optics: Multiple beam angles (15°, 25°, 40°,60°) for flexible lighting designs.

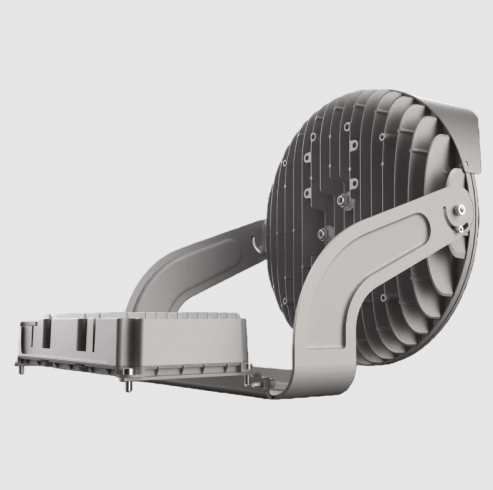

🧊 Advanced Thermal Management: Aluminum heat sink for optimal cooling and long lifespan (L70 > 50,000h).
🌧️ IP66 & IK10/ IK20 Rated: Resistant to rain, dust, and impact – ideal for outdoor stadium environments.
🔌 Smart Control Ready: Supports 0-10V dimming, DALI, and DMX512 systems for intelligent lighting control.
🏟️ Wide Application: Perfect for football fields, tennis courts, airports, docks, large parking lots, and industrial yards.
Product Specifications
Parameter | SP02-500W | SP02-600W | SP02-750W | SP02-800W | SP02-1000W | SP02-1200W |
Power (W) | 500W | 600W | 750W | 800W | 1000W | 1200W |
Input Voltage | AC176-500V/198-440V/100-277V | |||||
Luminous Efficacy | 170 Lm/W | 160 Lm/W | 155 Lm/W | 150 Lm/W | 175 Lm/W | 155 Lm/W |
Luminous Flux | 85,000 Lm | 96,000 Lm | 116,250 Lm | 120,000 Lm | 175,000 Lm | 186,000 Lm |
Beam Angle | 15°, 25°, 40°, 60° | |||||
CCT | 3000K, 4000K, 5000K, 5700K, 6500K | |||||
CRI | 70 / 80 / 90 (TLCI90 optional) | |||||
CERT | CE / RoHS / ENEC / ETL / DLC | |||||
Power Factor | ≥0.95 | |||||
THD | <15% | |||||
Percent Flicker | <1% | |||||
Machinery & Materials
Parameter | SP02-500W | SP02-600W | SP02-750W | SP02-800W | SP02-1000W | SP02-1200W |
Structure Material | ADC12 die-cast aluminum heat sink, Steel metal U-bracket | |||||
Surface Finish | Powder coated (Gray, black optional) | |||||

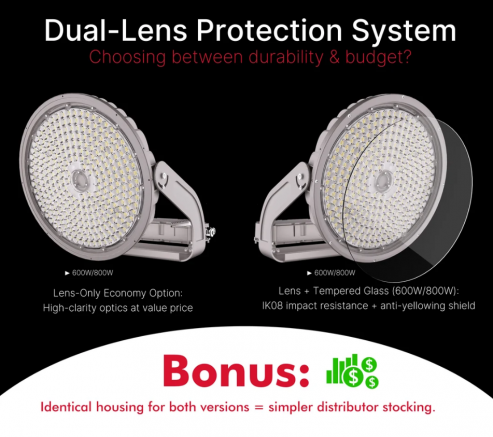

Lens | PC Lens / PC Lens + Tempered Glass | |||||

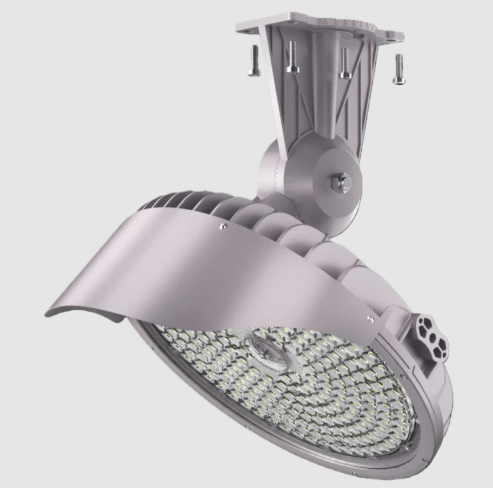

Bracket | Die-cast U-bracket with reinforcement ribs | |||||
Aiming | Aiming 180° rotation | |||||
Parameter | SP02-500W | SP02-600W | SP02-750W | SP02-800W | SP02-1000W | SP02-1200W |
IP Rating | IP66 | |||||
IK Rating | IK08, IK10 optional | |||||
Protection Class | Class I | |||||
Operating Temperature | -40°C ~ +50°C (-40°F ~ +122°F) | |||||
Lifetime | 50,000 hours (L70) | |||||
Warranty | 5 years | |||||
Surge Protection | 10kV, 20Kv optional | |||||
