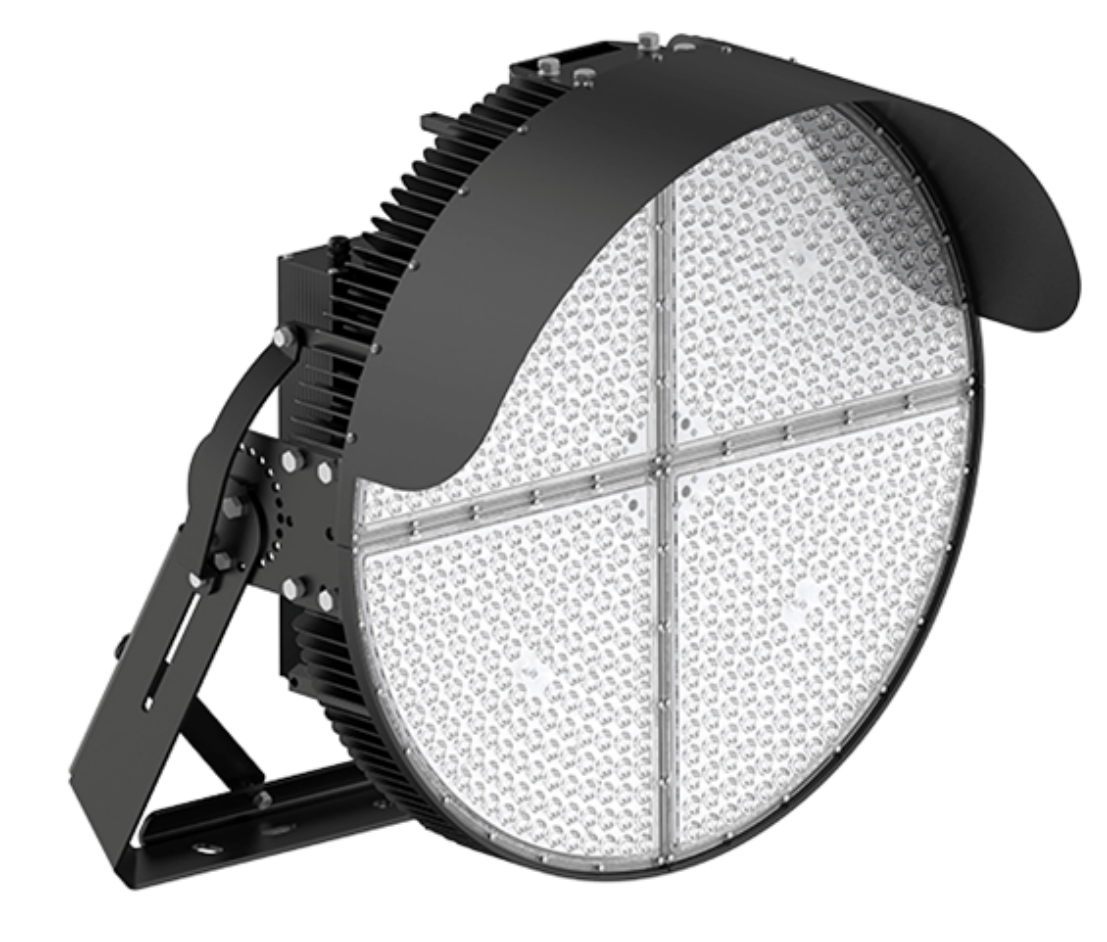

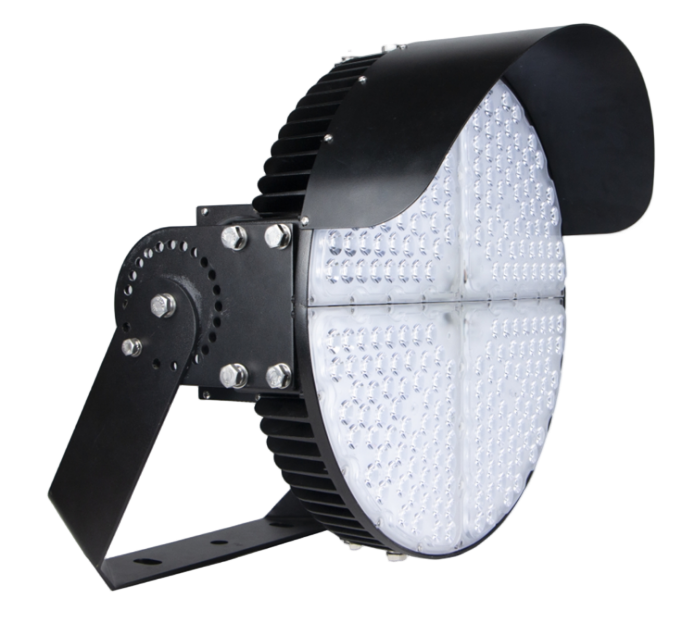

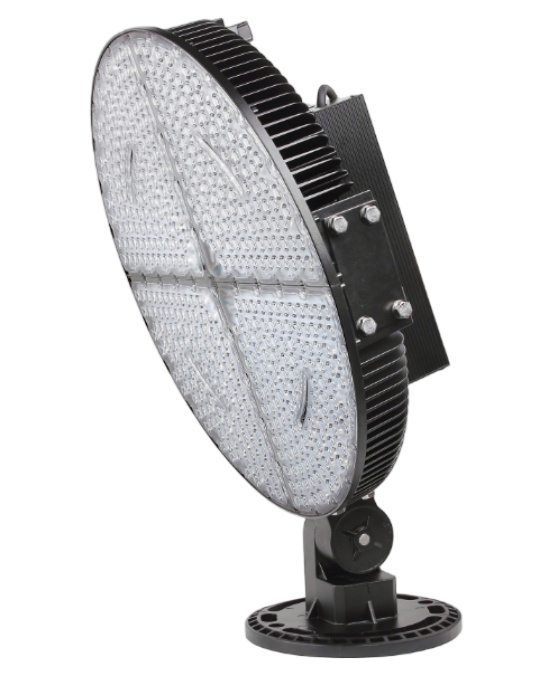

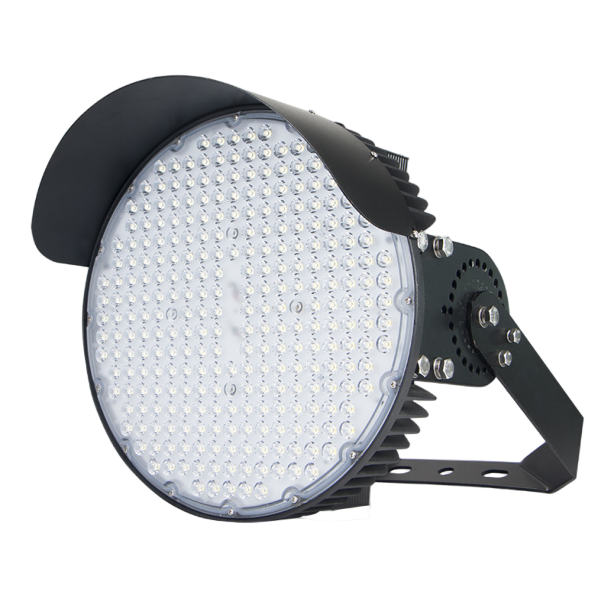

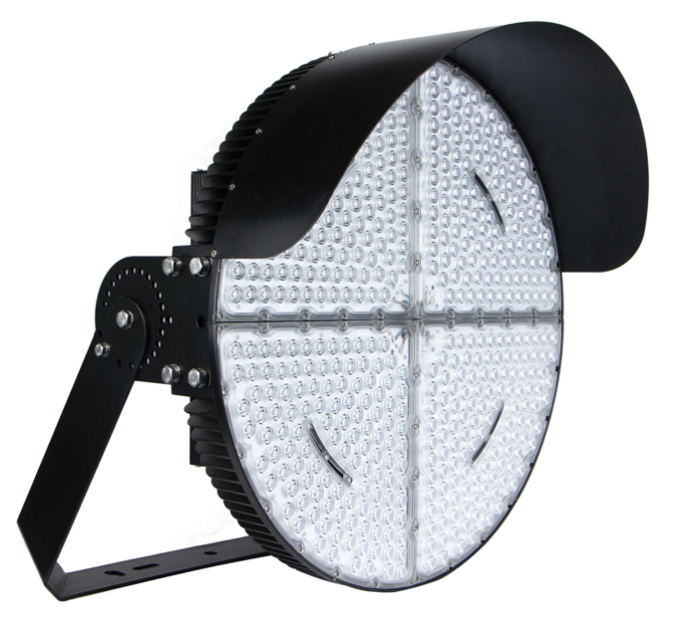

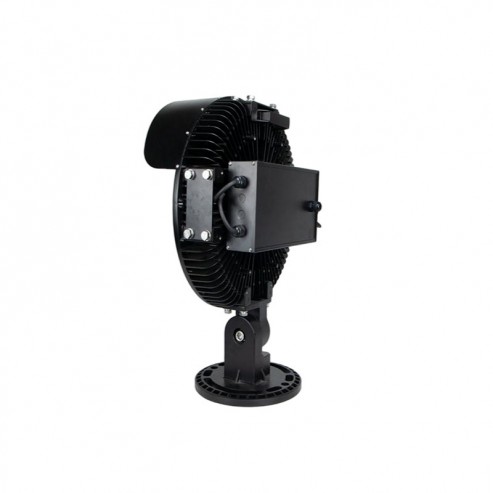

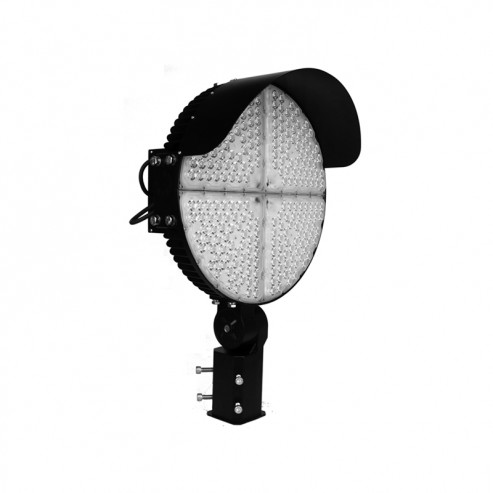

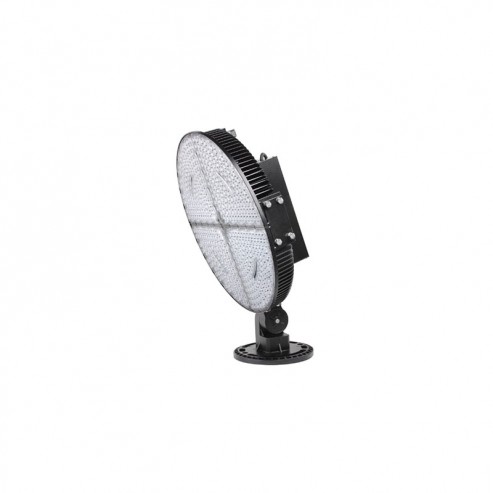

LED Stadium Light SP01

Product Model	1	1P	2	2P	3	3P	4
Wattage(W)	400	400	500-600	500-600	800-1200	800-1200	1500-1600
Lamp Size	Φ384mm	Φ384mm	Φ460mm	Φ460mm	Φ620mm	Φ620mm	Φ712mm
Gross Weight	12KG	12.5KG	17.5(net:16)KG	18KG	30KG	29KG	38KG
LED Chip	5050
Power Supply	Inventronics, Sosen...(Isolation type with intelligent dimming power supply)
Housing	Aluminum Alloy
Input Voltage	AC85-265V 、 AC36V ADC36V AC24V DC24V
Beam Angle	10°/25°/45°/60°
IP Rating	IP66
Impact Grade	IK10
Surge Protection	10kV( Standard); 20kV(Optional)
Power Factor	>0.95
CRI	Ra70/ Ra80/Ra90 (Optional)
CCT	2700-6500K
Working Temperature	-40°C to 50°C (-40°F to 122°F)
Luminous Efficiency	140-160Lm/W

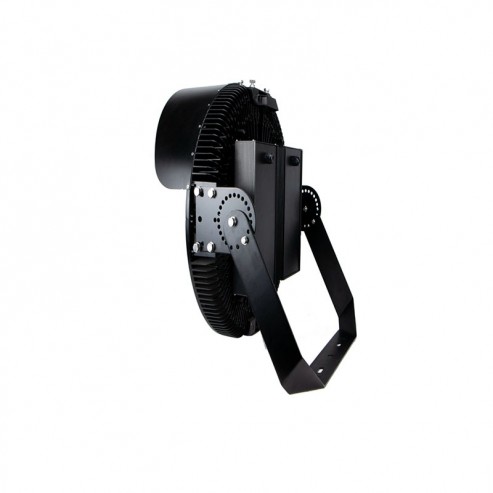

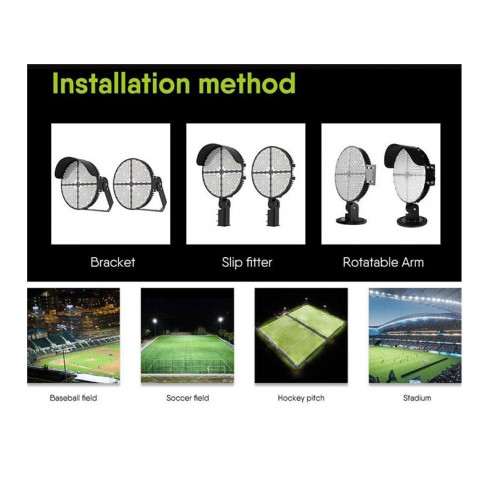

Mounting	U-bracket,Slip Fitter, Rotatable Arm (with safety rope)
Lifespan	>100,000 Hours
Warranty	7 years
