Specifications

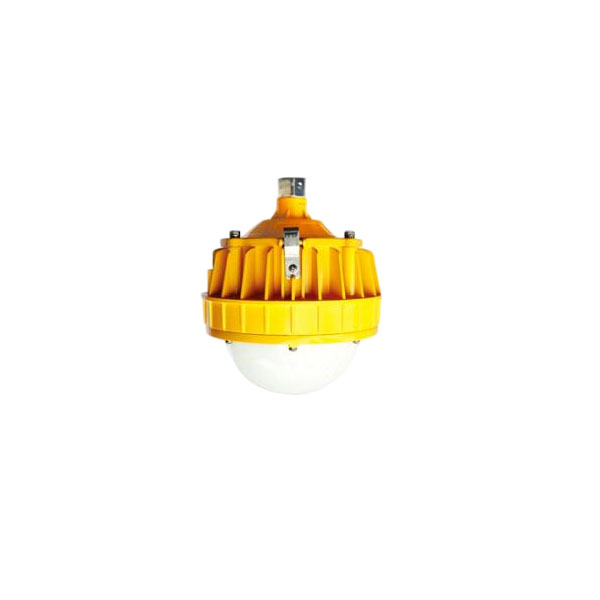

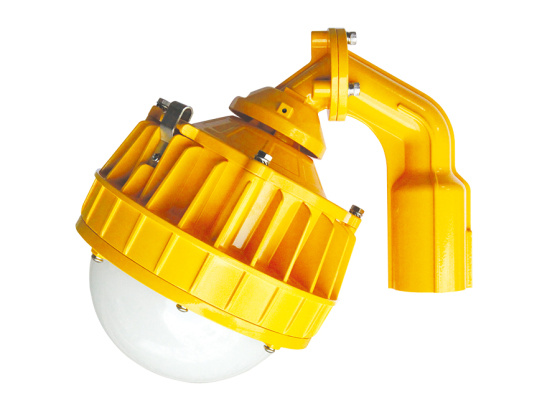

Model | Q1(Pole Mount) | Q2(Ceiling Mount) | Q3( Bent-Bar Mount) |
Photos
| |
| |
Wattage | 30-60W | ||
Size(mm) | Φ210×295 | Φ210×218 | Φ210×250 |
Weight | 4.2KG | 3.7KG | 3.7KG |
Input Voltage | 220 V - 240 V AC 50 Hz / 60 Hz | ||
IP Rating | IP66 | ||
Operating Temperature | -20 ºC to +45 ºC | ||
CRI | Ra>80 | ||
CCT | 2700-6500K | ||
Cable Entry | Φ8-φ14 | ||
Emergency Time | ≥150 minutes | ||
Diffuser | PC | ||
Luminous Efficiency | ≥140Lm/W | ||
Corrosion-proof class | WF2 | ||
Mounting | Pole,Ceiling, Bent-bar Mount | ||
Lifespan | >100,000 Hours | ||
Warranty | 7 years | ||
Shenzhen Oudi Optoelectronic Technology Co., Ltd, located in Shenzhen China, has focused on LED lighting for 20 years, and has ranked among the top 25 of LED industrial lighting companies in Shenzhen. We are a high-tech enterprise with R&D,production,sales and technical support.
