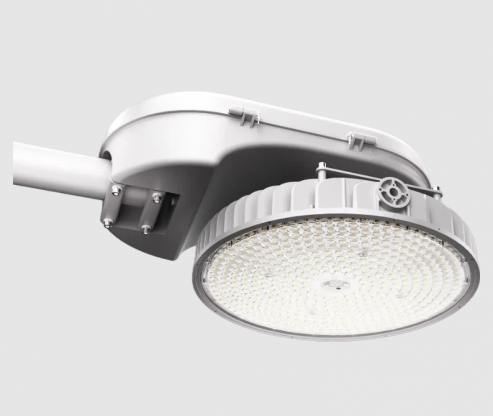

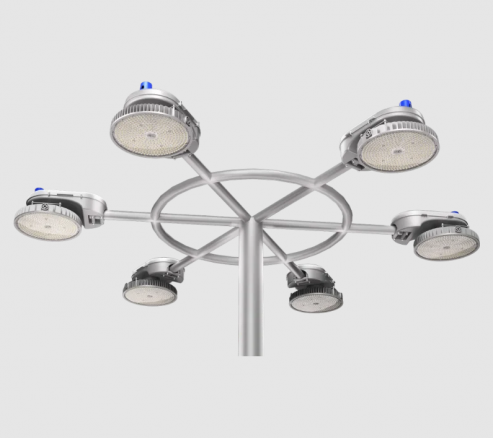

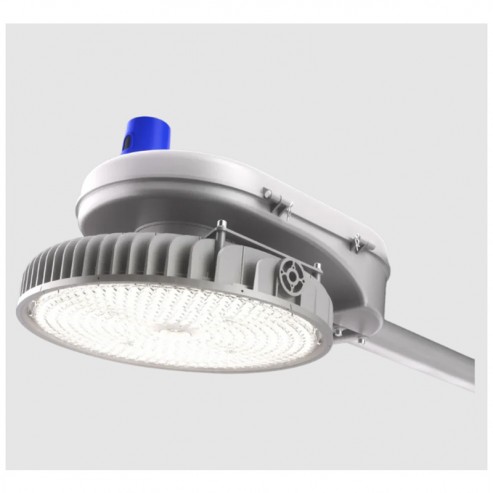

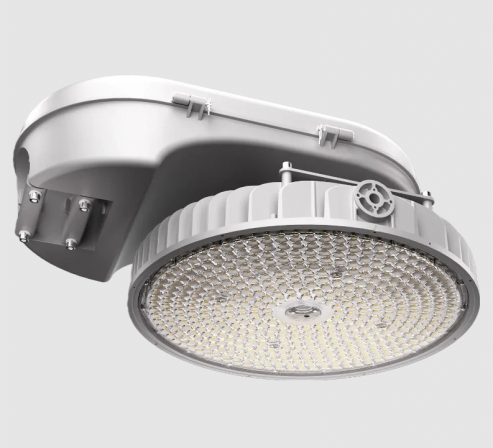

The Lighting HMO1-R High Mast Light is a next-generation high-power outdoor LED floodlight developed for large-area illumination such as ports, airports, expressways, and logistics centers.
With aerodynamic modular design, precision optics, and industrial-grade reliability, the HMO1-R delivers uniform, glare-free, and energy-efficient lighting in the toughest environments. Engineered for height, performance, and endurance — the HMO1-R defines professional high mast lighting.
Electrical & Optical
Parameter | HM01R-500W | HM01R-600W | HM01R-750W | HM01R-800W | HM01R-1000W | HM01R-1200W | ||
Power (W) | 500W | 600W | 750W | 800W | 1000W | 1200W | ||
Input Voltage | AC90-305V/100-277V | |||||||
Luminous Efficacy | 170 Lm/W | 160 Lm/W | 155 Lm/W | 150 Lm/W | 175 Lm/W | 155 Lm/W | ||
Luminous Flux | 85,000 Lm | 96,000 Lm | 116,250 Lm | 120,000 Lm | 175,000 Lm | 186,000 Lm | ||
Beam Angle | 15°, 25°, 40°, 60° | |||||||
CCT | 3000K / 4000K / 5000K / 5700K / 6500K | |||||||
CRI | Ra70, Ra80, Ra90, TLCI90 | |||||||
SDCM | 6 | |||||||
Power Factor | ≥0.95 | |||||||
THD | <15% | |||||||
Percent Flicker | <1% | |||||||
Protection & Reliability
Feature | Description | |
🌧️ | IP66 Waterproof | Suitable for heavy rain and coastal environments. |
💥 | IK10 Impact Resistant | Durable against vibration, wind, and impact. |
⚡ | 10KV/20KV Surge Protection | Industrial-grade surge protector ensures safety. |

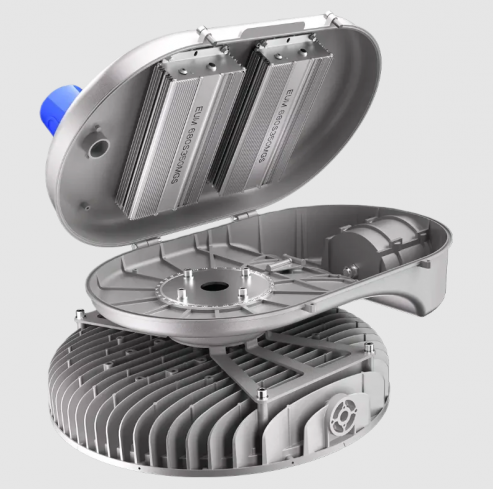

🌡️ | Thermal Control System | Advanced cooling maintains stable operation. |
🕒 | 50,000H Lifespan | Designed for 5+ years of continuous operation. |
⚙️ | Operating Temperature | Built to perform in extreme temperatures from -40°C to +50°C. |
